Pan Depth: 7”
Pan Capacity: 7 Quarts (6.6 Liters)
System Capacity: 8 Quarts (7.6 Liters)
Stroke Clearance: 4.125" (With Steel Rods, Check Crank Scraper Before Final Install)

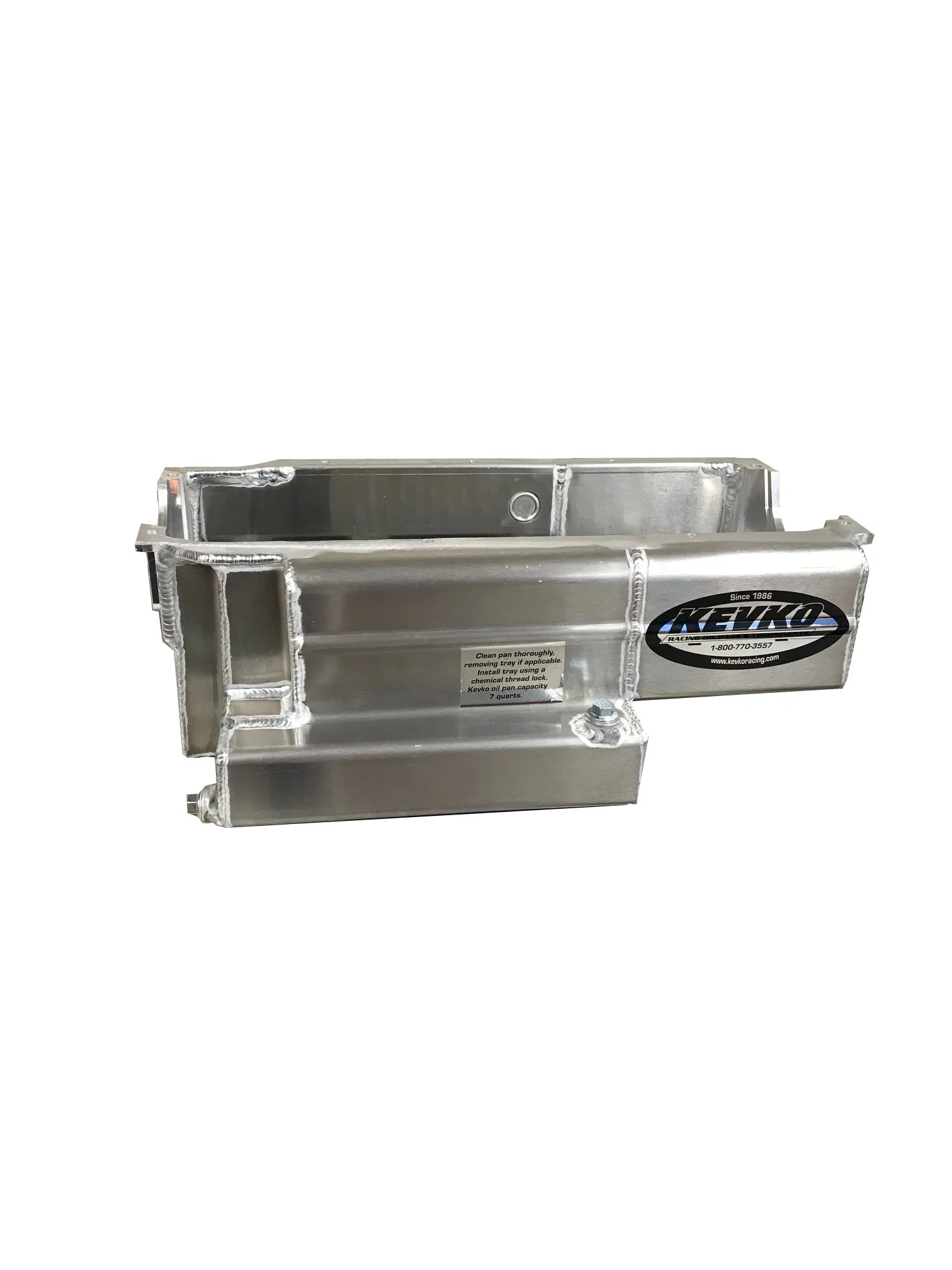

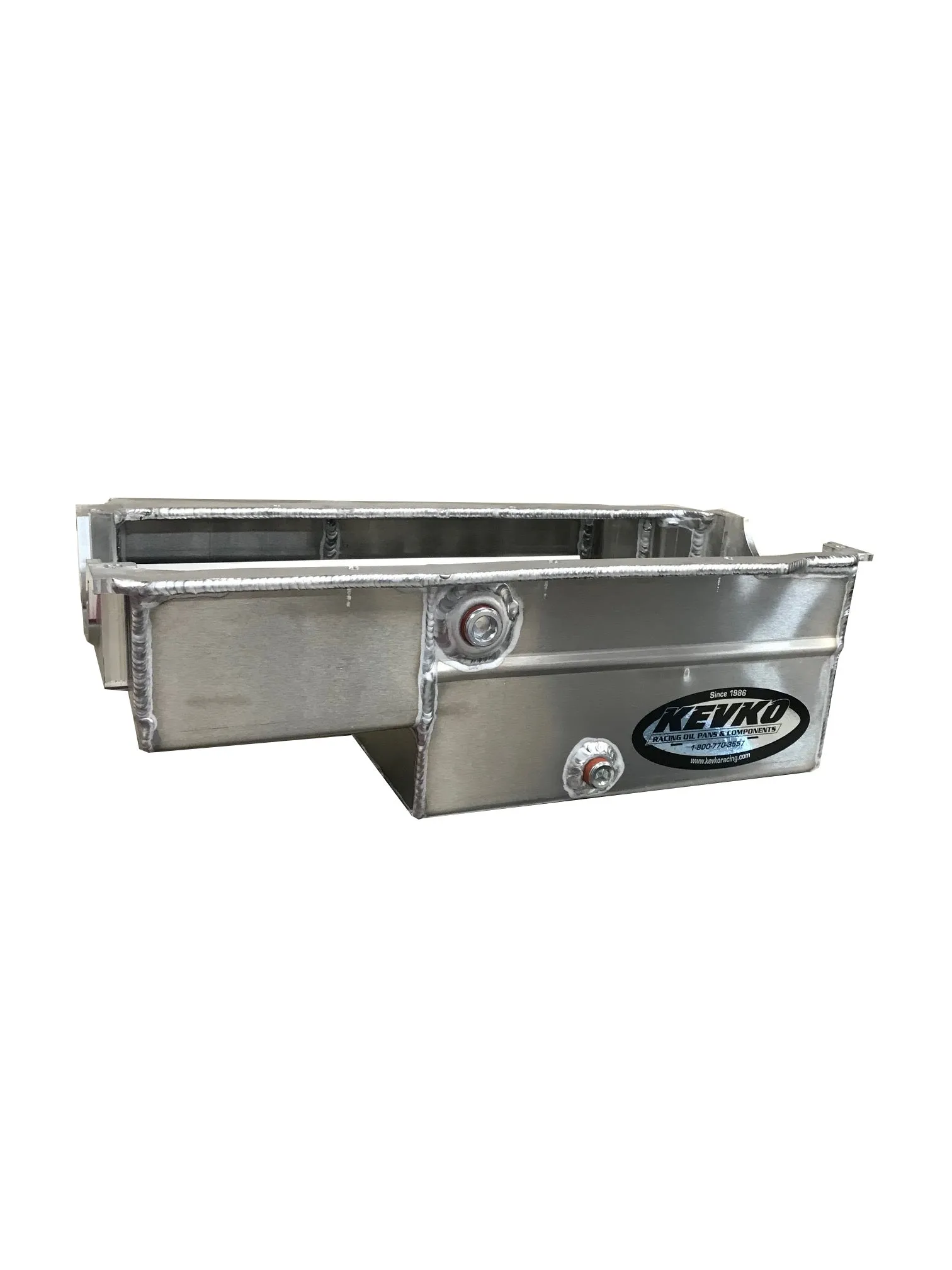

Description: This aluminum wet sump Circle Track oil pan fits the Small Block Chevrolet engines from 1957-1985 with the two piece rear main seal.
This oil pan features:

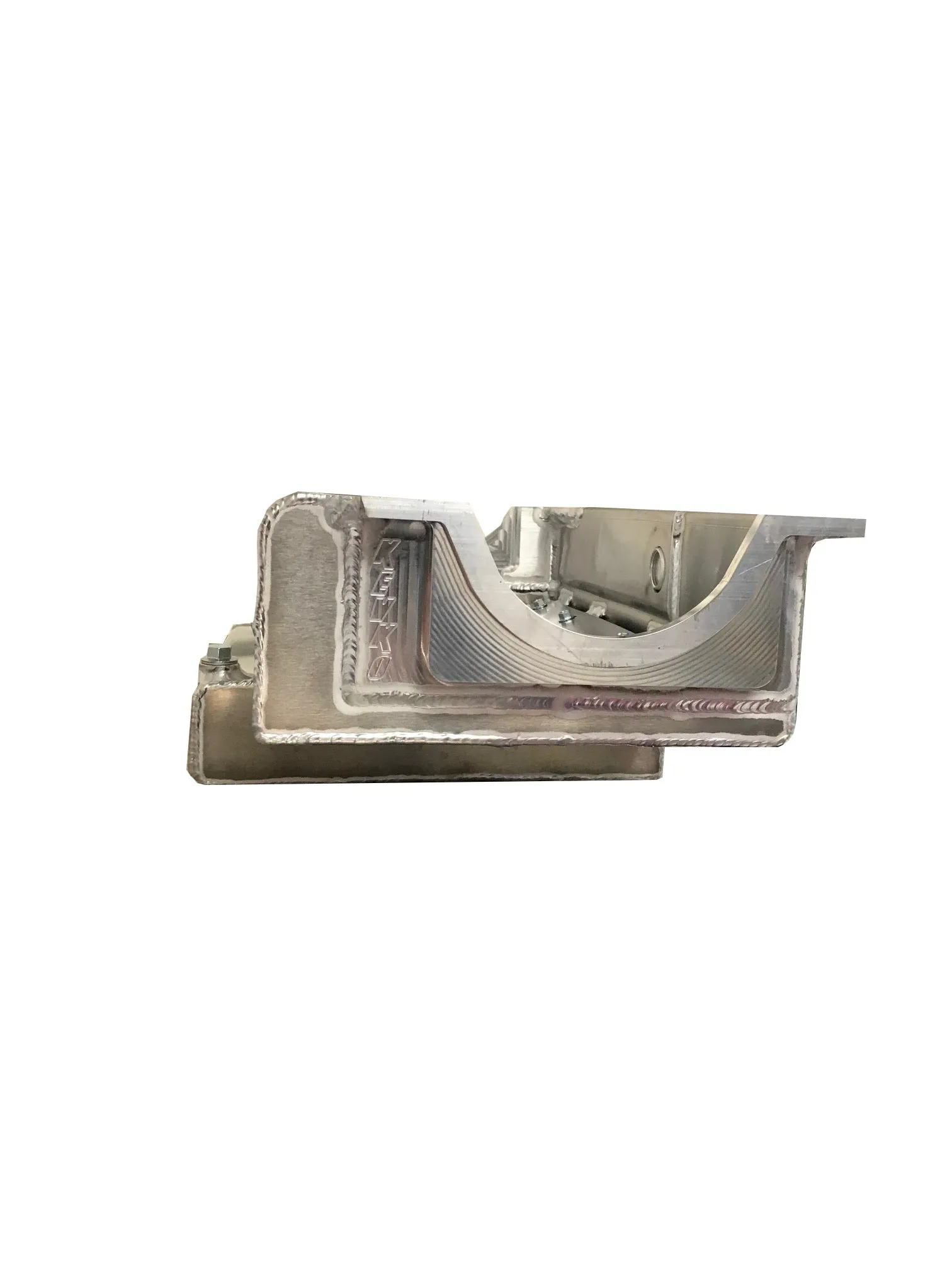

- a right side kick out that starts at the pan rail and runs the full length of the pan
- three access holes for the right side pan rail
- four trapdoors

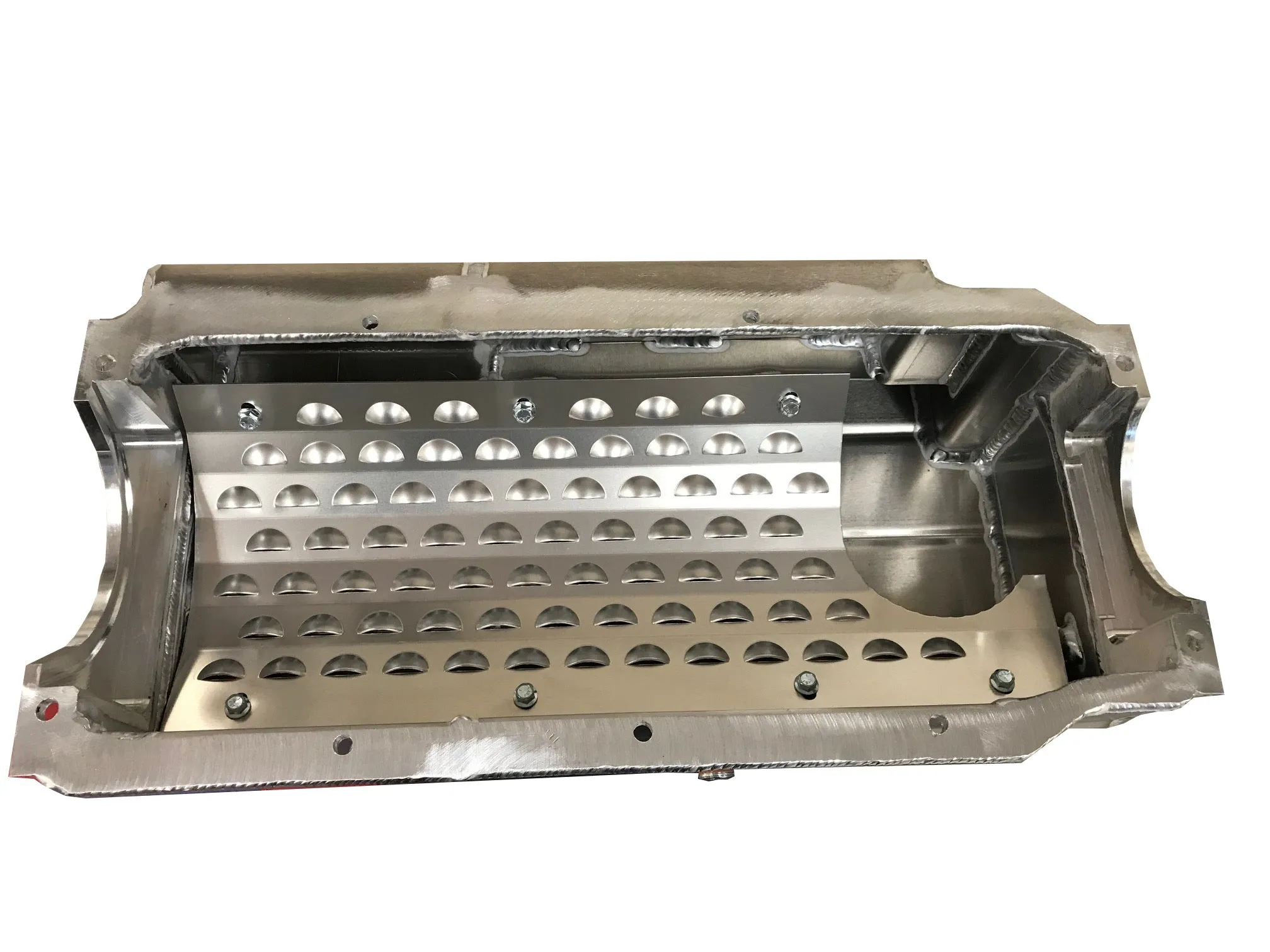

- a louvered windage tray
- an inspection hole
- an oil check level plug
- Temp sender Port
Dimensions: 13 1/4” L x 11 3/4" W x 7" H
This pan requires a "Tilton Style" mini starter. , MSD #5095, Tilton #54-40000, Quarter Master #114280, Stephenville #1001, Proform #66256, Powermaster #9400, Allstar #80520. There are many other starters, These are the most common.
| M55, M55A, 10553ST | 5/8 | ||
| M155, 10554ST | 3/4 | ||
| M55HV, 10550ST | 5/8 | ||
| M155HV, 10551ST | ¾ | ||
| 10555ST, 10552ST | ¾ Bolt On | ||
| M99HVS | 3/4 |
