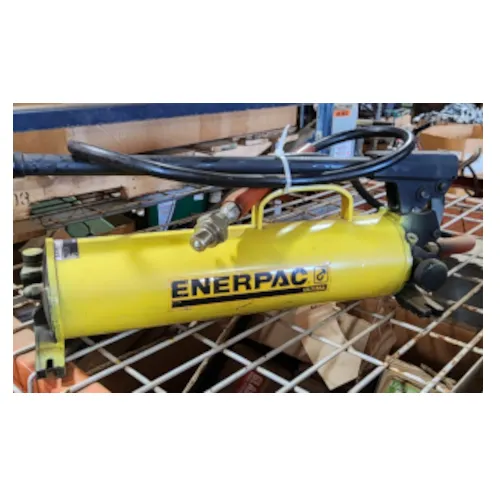

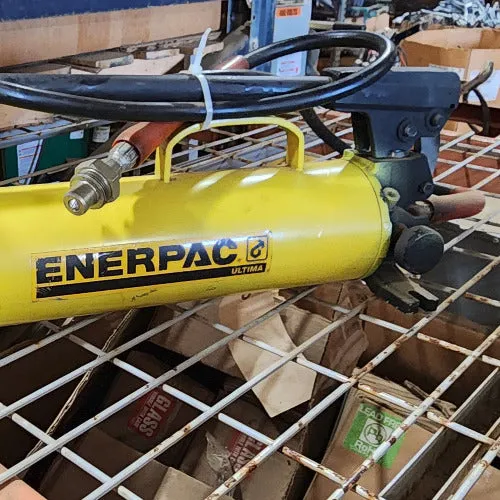

Enerpac P80, Two Speed, Hydraulic Hand Pump w/ Hose Reconditioned and 1 Year Operational Warranty
DETAILS:

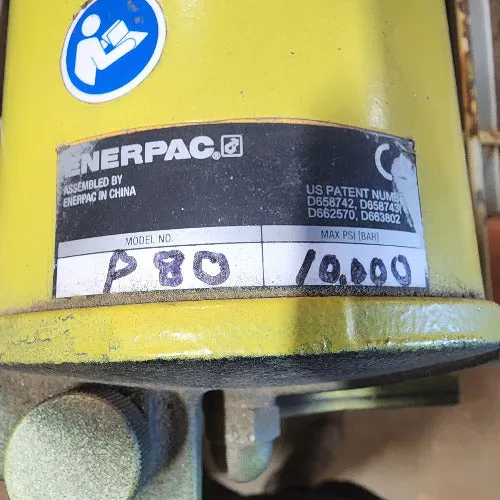

Model:P80 | ECCN:EAR99 | Harmonization:8413200000Series:P | Product Line:Industrial Tools
Ultima Steel Hand Pumps are durable, portable, and highly efficient. Each model in the series features an all-steel construction, a chrome plated plunger, and a wiper system for long-lasting performance.
All except the P39 are 2 stage pumps, which reduces the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal for applications when high flow is needed at the first stage, (such as when advancing a cylinder to the point of load contact). The pump switches automatically to the second stage which is the low flow high-pressure stage.
With a choice of oil capacities up to 453 in3 (7423 cm3), you will find Ultima Steel Hand Pumps that can handle multiple cylinder hook-ups, including models to suit either single-acting and double-acting cylinders.
Reduced handle effort and ergonomic grip for less operator fatigue
Vent free reservoir eliminates spills
Quick grip handle allows for easy transport
Integral reservoir over-pressurization protection
Maximum Operating Pressure (psi) 10,000 Pressure Rating (psi) 1st Stage 500 Pressure Rating (psi) 2nd Stage 10,000 Cylinder Compatability Single-acting Pump Type Two Speed Reservoir Capacity (in3) 134 Usable Oil Capacity (in3) 134 Maximum Flow at Rated Pressure .15 in3/stroke Oil Displacement per Stroke (in3) 1st Stage 1 Oil Displacement per Stroke (in3) 2nd Stage 0.15 Maximum Handle Effort (lbs) 77 Piston Stroke (in) 1 Valve Operation Manual Power Source Manual Weight (lbs) 23.6.
