Description:

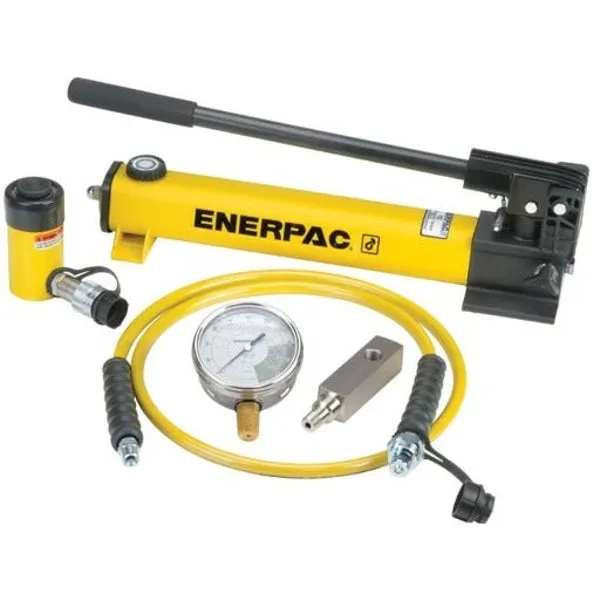

Hydraulic cylinder and pump sets, also known as porta power kits, offer immediate utility for various applications. The SCR106H-10 Ton set features a single-acting hydraulic cylinder (ram) from the widely adaptable RC Series, a two-speed pump, a 6-foot hose, a calibrated gauge, and a gauge adaptor.

Key Features:

• Versatile Configuration: Choose from a range of 5 - 100 ton cylinders to match specific application requirements.
• Diverse Pump Options: Select from hand, foot, air, or battery-powered hydraulic pumps to suit operational preferences.
• Ready-to-Use Kit: The SCR Series porta power kit comes fully equipped with an RC hydraulic cylinder, pump, gauge, gauge adaptor, and 6 ft. hose.
• General-Purpose Design: Utilizes the best-selling RC Cylinder for maximum versatility.
• Special Import: Expect delivery within 4-6 weeks.

Technical Information:

• Model: GT-SCR106H
• Capacity: 10 Ton (approx. 98 kN)
• Stroke Length: 6.13 inches
• Hydraulic Cylinder Type: Single-Acting
• Pump Speed: Two-speed
• Hose Length: 6 feet
• Gauge Calibration: Included
• Import Lead Time: 4-6 weeks
