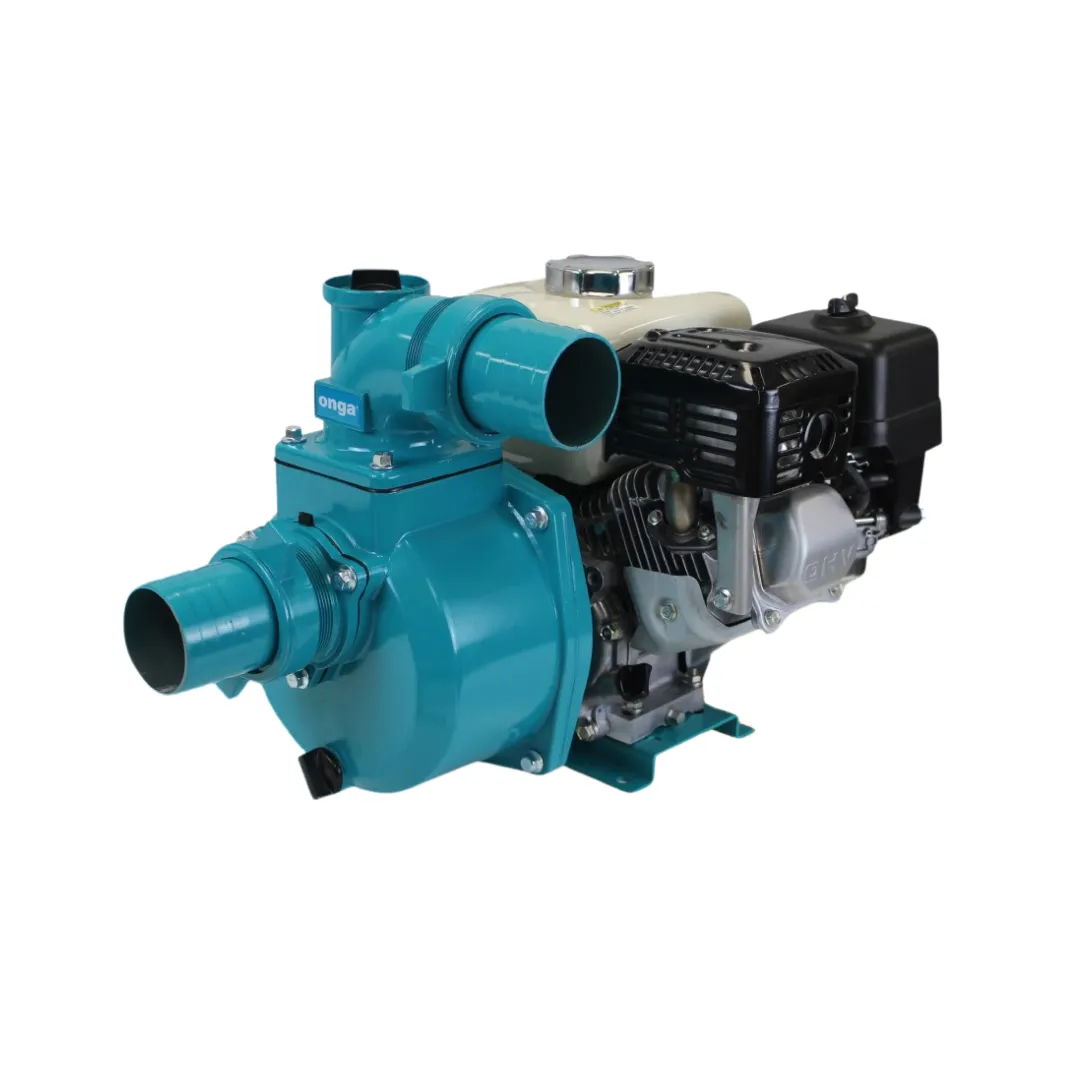

Onga Torrent Master OTM1000 Series 6.5HP Siangle Stage Firefighting Pump with Honda GX200 Engine (Max 1000LPM/350kPA)

The Onga TM1000 is a horizontal, single-stage centrifugal transfer pump. It features a more robust aluminum casing for light weight, high-grade corrosion resistance with 3” aluminum Nut & Tail fittings for ease of connection. Coupled to a highly reliable Honda GX200 engine, the TorrentMaster is capable of pumping debris free water at a rate of 1000 lpm.

FEATURES

• Robust aluminium casing for lightweight high grade corrosion resistance

• Aluminium nut and tail fittings

• Cast iron open style impeller

• 3” inlet and outlet for high flow rates

• Strong and durable construction with built-in non-return valve aids quick priming

• Rotatable discharge port makes the unit adaptable to various applications


SPECIFICATIONS

• Inlet 3" BSP (male)
• Pump Casing: Powder Coated Aluminium

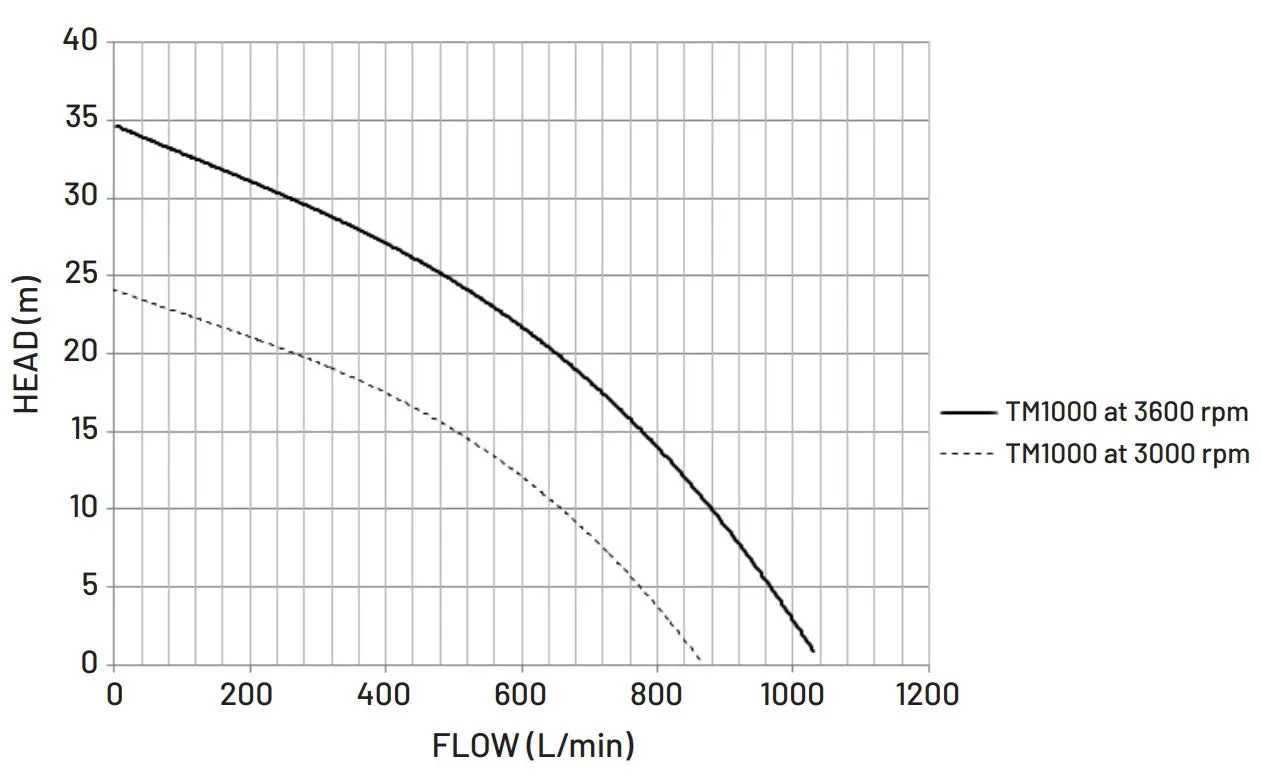

• Max. head - 35m
• Max. flow - 1000lpm
• Built-in non-return valve aids quick priming

APPLICATIONS

• High flow water transfer
• Flood water evacuation

OPERATING CONDITIONS

• Fluid: Water

• Max. Water temperature: 40°C

• Min. Water temperature: 1°C

• Max. Ambient temperature: 40°C

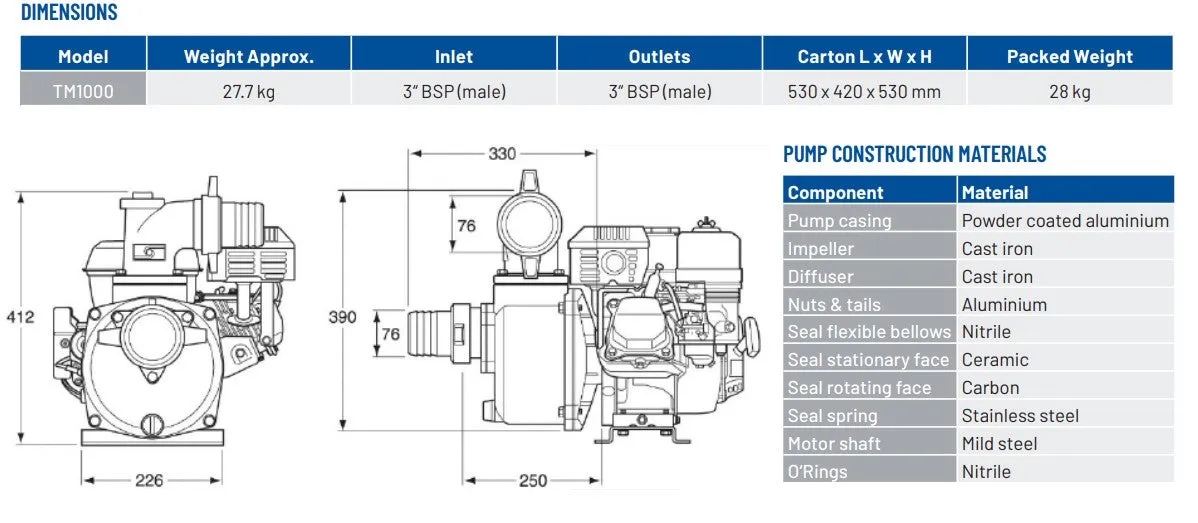

DIMENSIONS

• Carton Dimensions
• Length: 530mm
• Width: 420mm
• Height: 530mm
• Weight: 27.7kg
