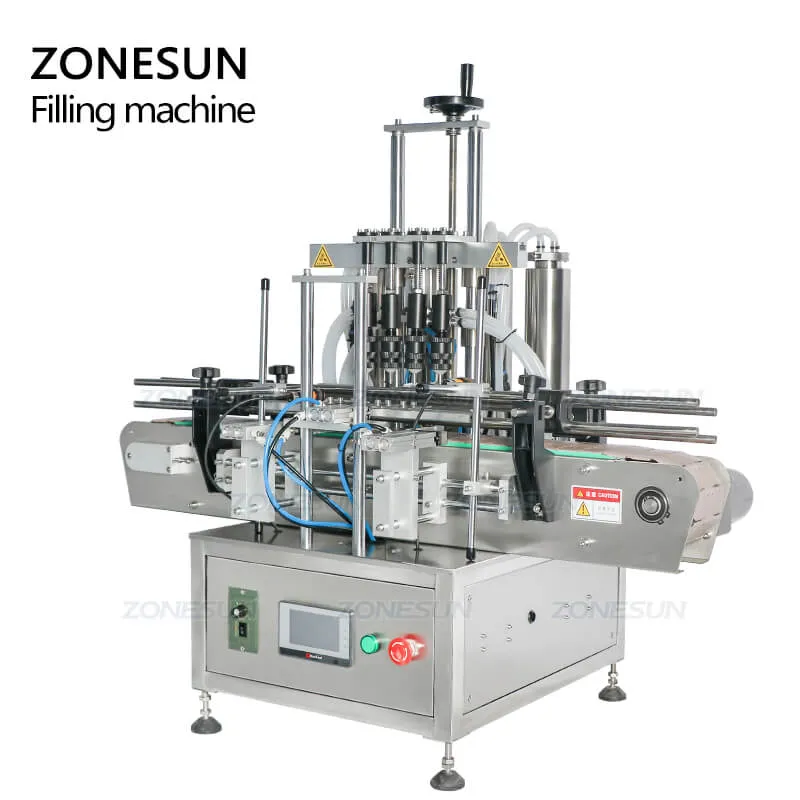

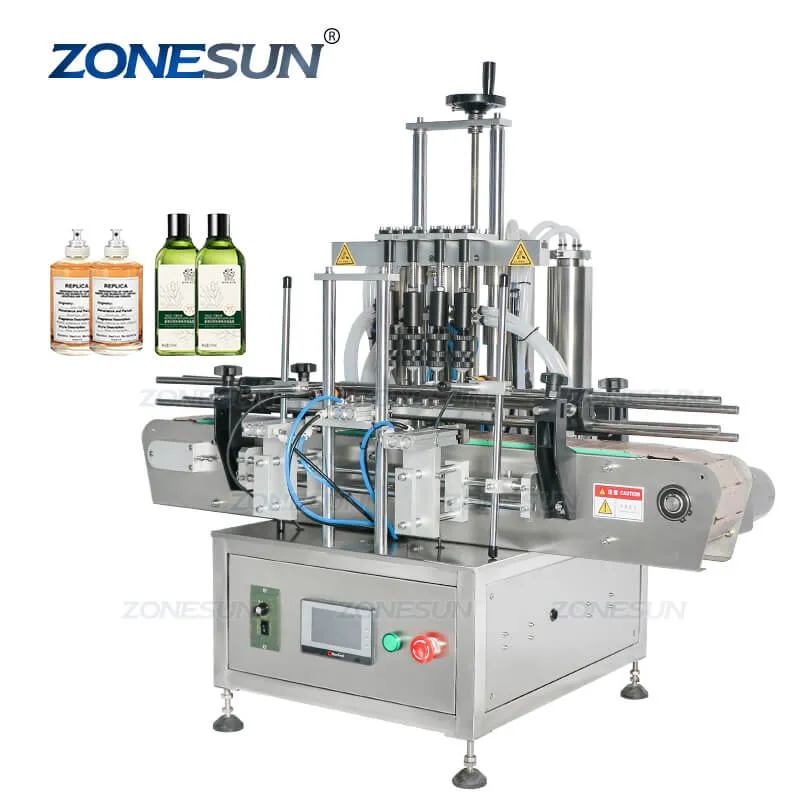

When filling nozzle inserted into an empty bottle, the seal rings will help to seal bottle and the air in the bottle will be pulled out. The vacuum in the bottle then sucks liquid into the bottle. When the bottle is full and reaches the preset filling level, the extra liquid will be transferred back to the storage tank,and the bottle will be filled

Parameter

• Machine model:ZS-DTZL500
• Machine power:About 80W
• Filling range:About 5-500ml
• Filling speed:20-40 bottles/min (4 nozzles)
• Machine air pressure:0.4-0.8MPa
• Applicable bottle height:<200mm
• Applicable bottle mouth diameter:<22mm
• Adjustable liquid surface distance: 5-20mm
• Suitable bottle diameter:＜100mm
• Machine size:About 117*69*118cm
• Machine weight: 71kg
• Package size:1100*580*1090mm
• Package weight:About 107kg

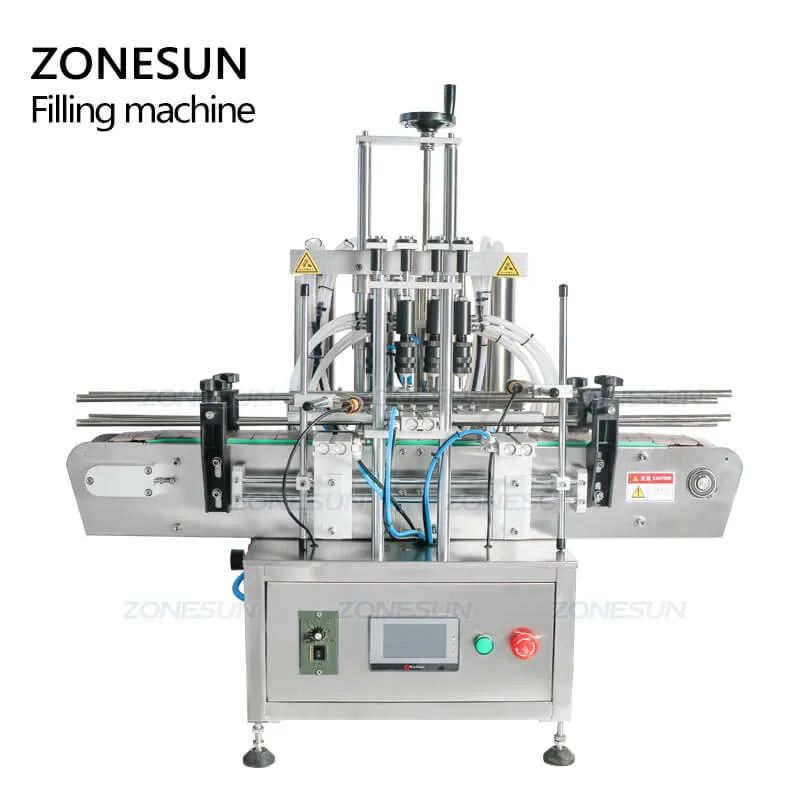

Equipped with touch screen control panel,this makes it more convenient to adjust working parameter.The language can be customized according to operation need.All circuit boards are installed in electric box,ensures the safety of operator.

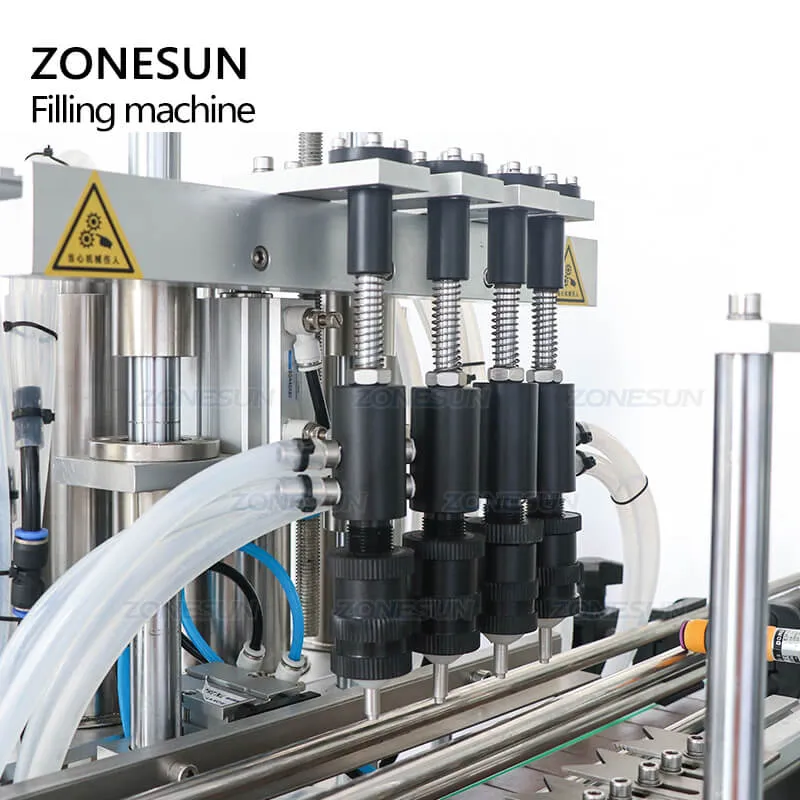

Use the vacuum constant liquid-level working principle,fill liquid accurately. If the liquid level is over the position that marked by red line,the machine will suck the extra liquid and make it back flow to the material container.There is a spring for each nozzle,that can prevent the bottle from breaking due to larger air pressure.

The high quality electric eye can be used to receive and send out signal to control the machine fill liquid automatically,it helps to improve filling accuracy and save working labor.

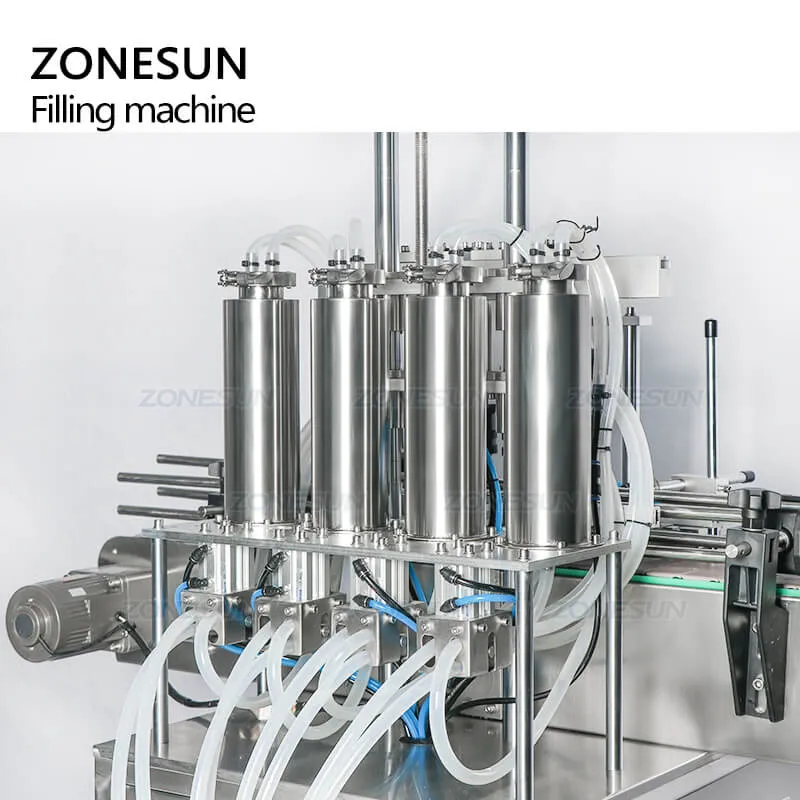

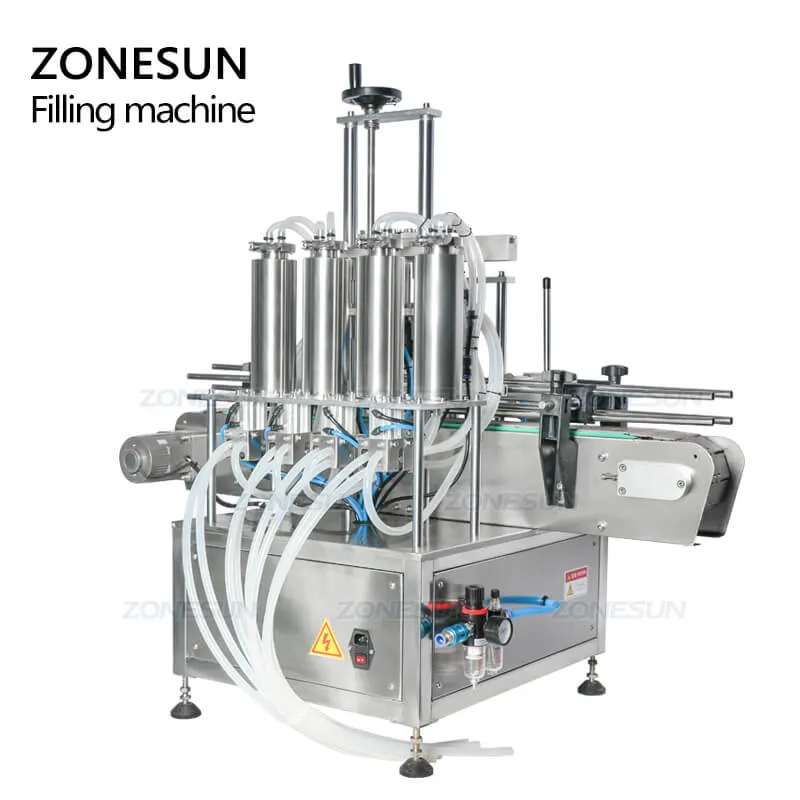

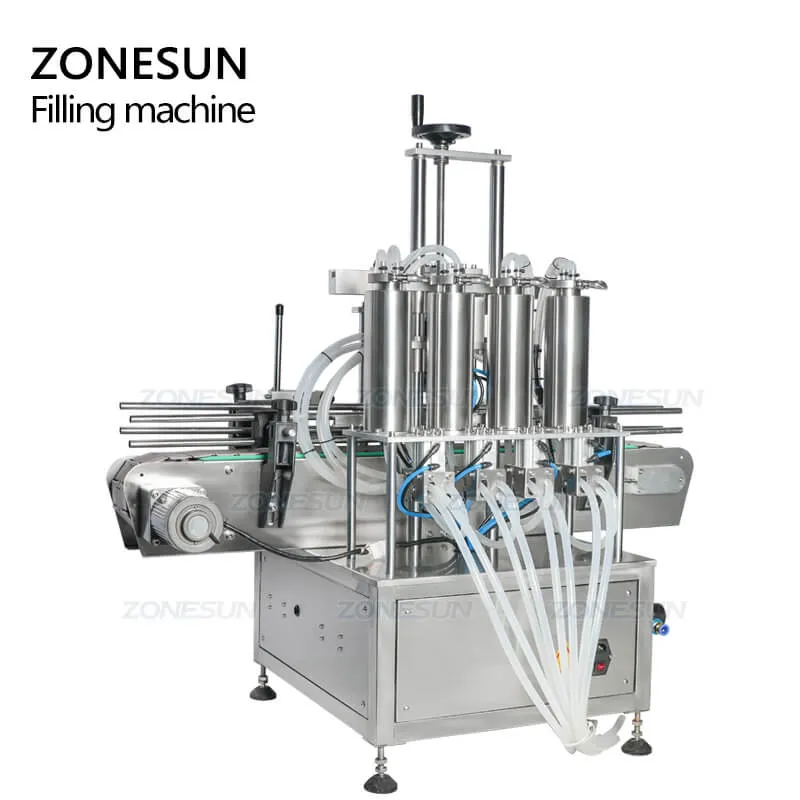

The storage tank is used to storage extra liquid in the bottles,this can ensure the liquid will be not wasted and there is no contact between liquid and pumps or mechanical components.

The chain conveyor belt is with large loading capacity,this can ensure bottles will be transported faster and stably,reduce production labor and error.
